Emergency Services Radio Scheme Provided by the Home Office

A look at the history of the radio schemes provided by the Home Office for Civil Defence and the Emergency Services during the Cold War era.

Background to U.K. Emergency Communications

During the Cold War period the Home Office Directorate of Telecommunications ( D of T) provided radio communications for the Civil Defence and Emergency Services. In 1991 it changed its name to DTELS. The Civil Defence communications were dismantled after the UKWMO closed in November 1992 but the Emergency Service radio systems continued under this body.

DTELS moved from the public to private sector when it was sold to NTL Broadcast on 1st March 1994. Emergency Service communications were then sold to ARQIVA who maintained the analogue network. A phased changeover of Police analogue radio scheme to 'Airwave' a secure digital network took place between 2004 and 2006. This was followed by the Fire Brigade VHF analogue radio which completed their move to Airwave by the end of 2009. By 2011 all three 'Blue Light' services had completely transferred from analogue systems to the secure Airwave network.

The UK Police first introduced VHF radios in 1946. In 1963 a Home Office circular indicates the planned introduction of radio for Civil Defence too. At this time Civil Defence radio schemes included the Auxiliary Fire Service and the Civil Defence Corp as well as the UKWMO. Initially Fire Brigades shared their county's Police radio system but by the end of the 1970ís all had switched to their own dedicated system. A few Police and Fire authorities opted out of the Home Office D of T contracts and went their own way.

During the early 1970ís the use of radio technology increased within the Emergency Services. In addition to county wide VHF radios in vehicles, the police introduced personal UHF radios (P Set) in most towns and cities. UHF personal radios were introduced in the Prison Service too. Fire Brigades augmented their VHF county scheme with UHF personal radios on fire grounds. Retained firemen had their home call bell and warning siren replaced by a single tone radio pager. The Royal Observer Corps (ROC) master posts were given VHF radios as a back up to the landline connection.

The Cold War Connection

If Britain had come under attack from nuclear weapons the Police and Fire radio schemes described in the following topics would have played a part in the recovery after the attack. Their radio schemes operated independently of Post Office / British Telecom land lines, by the use of radio links instead.

The UKWMO and RGHQ landlines were were private circuits (known as Private Wires) which shared the same network hardware as the public telephone system but operated separately from it. The UKWMO and RGHQ Networks employed radio links as standby to the landline part of the network. These radio links were provided by the Home Office Directorate of telecommunications and utilised the extensive network of radio masts already provided for the Police and Fire authorities.

Major Radio Frequency Changes during the 1980ís

Home Office VHF Radio Bands

VHF Frequencies

In the UK the VHF FM broadcast band had been restricted to 88-97MHz whereas in Europe it was 88-108MHz and most VHF stereo radios in use covered the complete band. The BBC occupied the majority of this restricted band. In the UK the remainder was allocated to mobile radio. In 1979 the World Administrative Radio Conference (WARC) passed a resolution requiring the United Kingdom to remove its mobile radio allocation from 97-108MHz, as this was a designated broadcast band in Europe. The change had to be implemented by December 31st, 1989. Once the existing UK users had been moved the band was opened up for commercial radio stations.

Part of the broadcast band, 97-103MHz was used by the Emergency Services, which meant that the ordinary members of the public could eavesdrop on the Police communications with their home FM Stereo radio. So this change would afford them some privacy.

The Home Office D of T was given access to new frequency bands and others extended. The new bands were 70.5-71.5MHz, 143-144MHz and 152-153MHz. The two UHF bands were extended downwards by a Megahertz to cover 450-453MHz and 464-467MHz. The 80-85MHz band was reduced to 80.0-81.5MHz and 83.5-84.0MHz. New bands in the microwave region were also allocated.

The change to Emergency Service radios caused by the 1979 WARC was phased in between 1987 and was completed 5 months early on July 31st, 1989. During this phased changeover the opportunity was taken to restructure UKWMO radio communications too. This was very timely as a review of UKWMO communications in 1981 had identified a number of areas for improvement.

Organisation and Callsign Plan

Regional Wireless Depots

The D of T was organised along the same regional boundaries as the Home Defence. Within each region was a wireless depot. The 1950ís term Wireless has been superseded in the modern language by Radio, but modern maps often show mobile radio hilltop sites at W.T. Station for Wireless Telegraph Station usually indicating there Military or Home Office past history. The Regional Wireless Depots and their outstations were responsible for the installation and maintenance of the emergency service radios in the region.

The radio schemes operated by the Home Office and Scottish Office were allocated four character call signs beginning with M2. Most police force and fire brigade radio operators dropped the M2 prefix under normal operations and used the last two letters as an abbreviation in radio operations. M2QK would be 'QueKay'. Others used the phonetics words for the last two letters M2YM was 'Yankee Mike'. Leicestershire Police was one exception who used the whole of their callsign and ended every transmission with 'emtunnul out', it took me a while to realise the first word was actually 'em-two-en-el' (M2NL)

In England the first letter of the abbreviated call sign for each County Police or Fire scheme signifies the Region. Whether by design or accident this regional identifier is often the first or last letter of the place name of the wireless depot. All Welsh counties start with a W, Scotland does not fit this naming scheme. The engineers at the wireless depot had a call sign M2R and the regional identifier. For example in Region 9, M2RY for the counties using M2YA-M2YZ.

M2xx Callsign Allocations

CountyPoliceFire
Region 1 [Scotland]
Lothian and BordersZHZF
TaysideZSZSF
FifeZTZTF
Scottish Central RegionAHAYF
StrathclydeASGX
Dumfries and GallowayAJAF
GrampianUBUGF
Northern HighlandURUF
Region 2
Kippax [X] and Marley Hill [L]
ClevelandLZLT
DurhamLALF
HumbersideXHXT
North YorkshireXNLY
NorthumberlandLBLJ
South YorkshireXSXV
Tyne and Wear Fire-LP
West YorkshireXWXF
Region 3 Stanton [N]
DerbyshireNAND
LeicestershireNLNK
LincolnshireNCNV
NorthamptonshireNGNO
NottinghamshireNHNZ
Region 4 Cheveley [V]
BedfordshireVAVM
CambridgeshireVBVC
EssexVGVD
HertfordshireVHVI
NorfolkVKVF
SuffolkVLVN
Region 6 Hannington [H]
BerkshireHUHD
BuckinghamshireHBHK
HampshireHCHX
OxfordshireHAHI
Isle of WightHWHP
SurreyHJHF

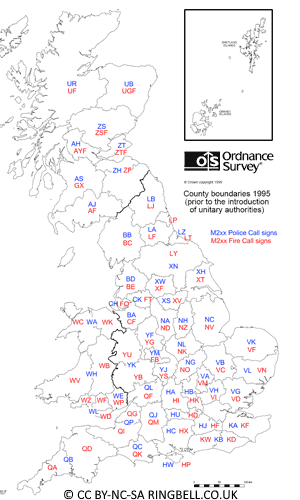

Callsign Map

M2XX Callsign Map
CountyPoliceFire
Region 6 Cranbrook [K]
KentKAKF
Sussex PoliceKB-
East Sussex Fire-KW
West Sussex Fire-KD
Region 7 Shapwick [Q]
Devon Fire-QD
Devon and Cornwall PoliceQB-
Cornwall Fire-QA
DorsetQCQK
GloucestershireQLQF
Avon Fire-QG
Avon and Somerset PoliceQP-
Somerset Fire-QI
WiltshireQJQM
Region 8 Wales [W]
Clwyd, Gwynedd (North Wales)WA-
Dyfed, Powys (DFP)WH-
South WalesWL-
GwentWEWP
Clwyd-WK
Gwynedd-WC
Dyfed-WV
Powys-WB
South Glamorgan-WD
Mid Glamorgan-WF
West Glamorgan-WZ
Region 9 Romsley [Y]
StaffordshireYFYG
WarwickshireYJYS
West MidlandsYMFB
West Mercia PoliceYK-
Hereford and Worcester Fire-YB
Shropshire Fire-YU
Region 10 Billinge [B, C]
CheshireBACF
CumbriaBBBC
LancashireBDBE
Greater ManchesterCKFT
MerseysideCHFO
N.I. RegionPoliceFire
UlsterRU?
